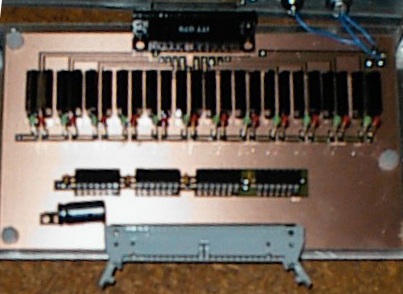

The circuit board layout was designed using a freeware
CAD package called Easytrax and is double-sided. The designs were

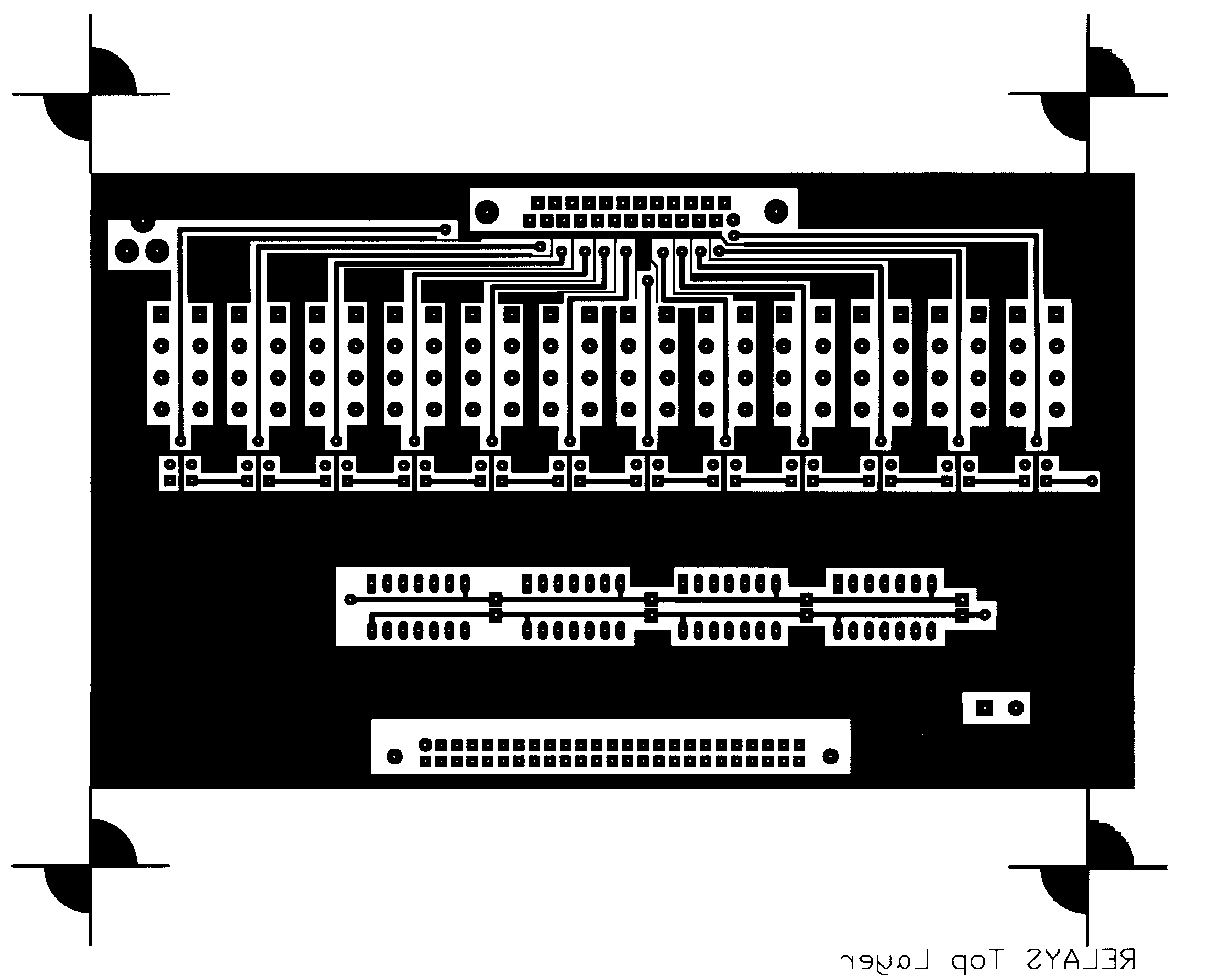

printed onto laser printer transparencies. The top layer was flipped
horizontally so that the image was correct when the transparencies were
placed on the photo-sensitive board for exposure.

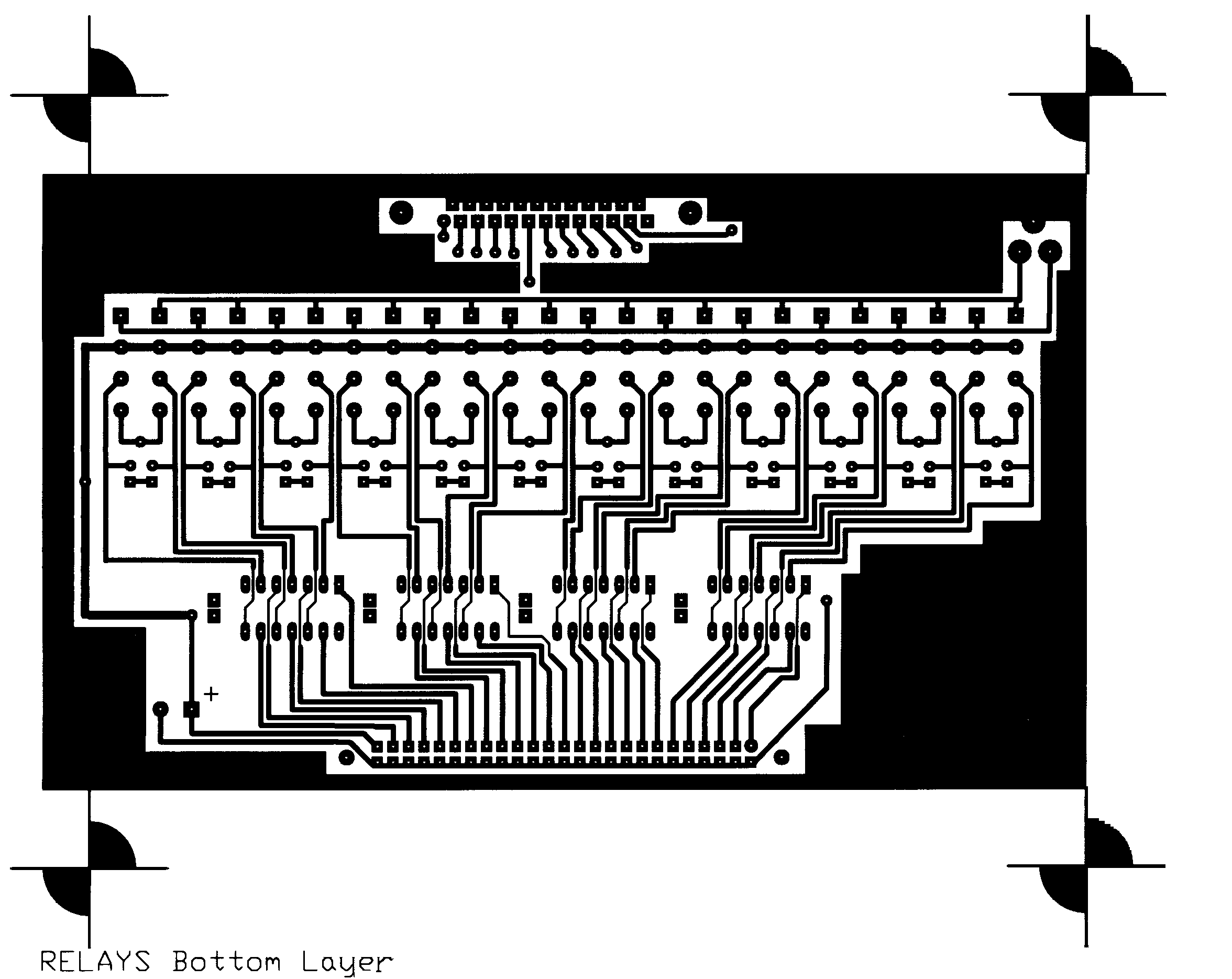

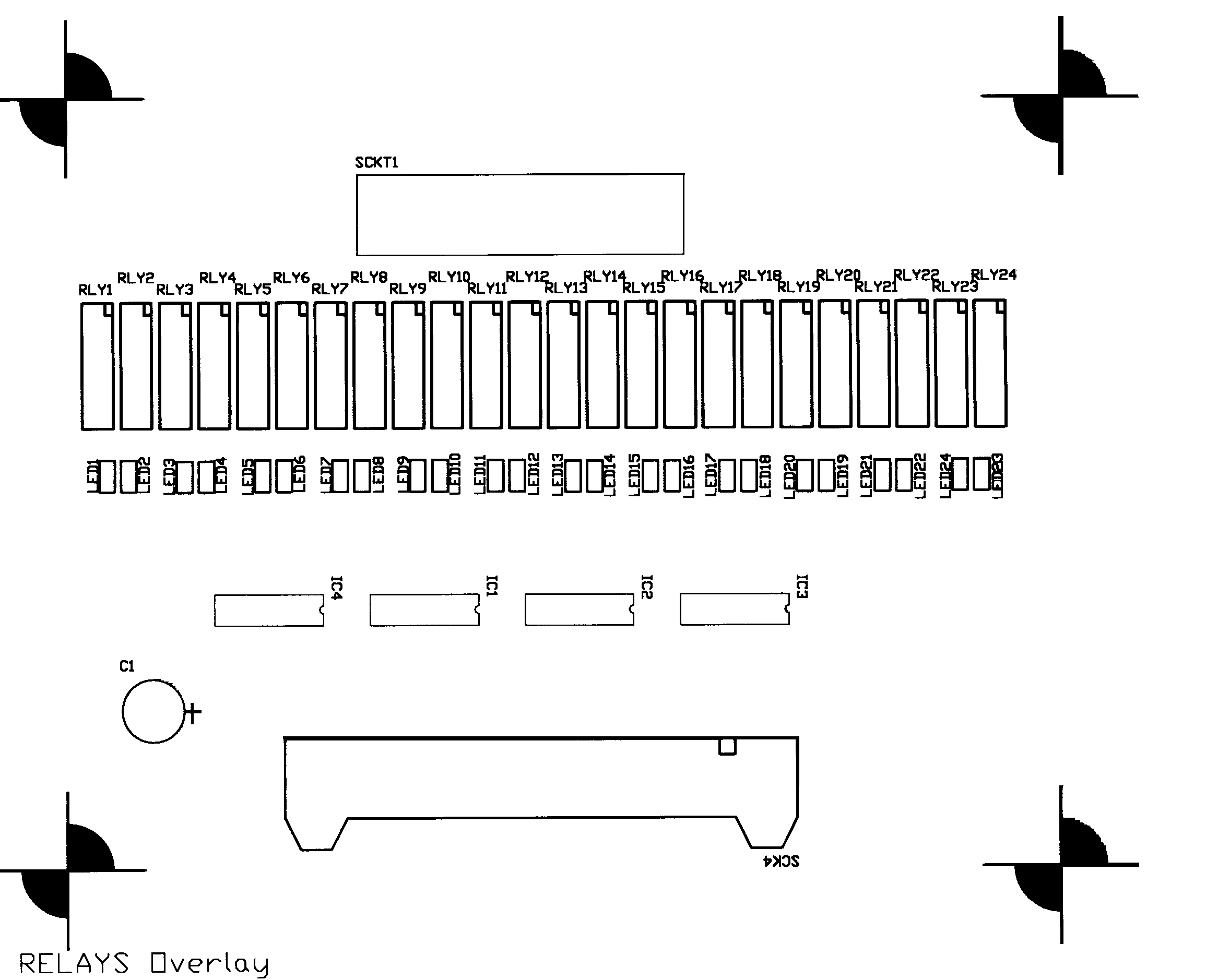

Click the following diagrams to download Postscript files showing the
layout of the circuit board :-
 |
