LUX-ZEPLIN (LZ)

LZ team in Sheffield:

Prof Vitaly Kudryavtsev – Sheffield PI

Prof Dan Tovey – Chair of the LZ-UK Institute Board

Dr Elena Korolkova – UK Data Centre Production Manager

Dr David Woodward – former PhD student, now at Pennsylvania State University, and Sanford Underground Research Facility, USA

Dr Peter Rossiter – former PhD student, now back in Australia

Dr Andrew Naylor – former PhD student, now at NERSC, LBNL, USA

Mr Tom Rushton – PhD student

Miss Jemima Tranter – PhD student (also on G3 DM search at Boulby)

Mr Jo Orpwood – PhD student

Brief introduction to dark matter search

Non-baryonic dark matter is believed to be responsible for about 85% of the total matter content and for about 23% of the total mass-energy content of the Universe. The most likely dark matter candidate – Weakly Interacting Massive Particle (WIMP), is a natural product of Supersymmetric theories of particle physics. A search for these particles with accelerators (particle physics) and using direct or indirect methods of WIMP detection (particle astrophysics) complement each other and in case of discovery will allow physicists to determine or to severely constrain parameters of supersymmetric models.



LUX-ZEPLIN (LZ) experiment

LZ is a next-generation direct WIMP search experiment that will be operated at Sanford Underground Research Facility (SURF) in Lead (South Dakota, USA). The LZ Collaboration consists of more than 200 scientists and engineers from 37 institutions in the US, UK, Portugal and South Korea.

The LZ experiment will utilise the liquid noble gas technology using two-phase xenon detector with liquid xenon as the target for WIMP interactions. The technology was first developed in the UK with single-phase liquid xenon experiment ZEPLIN-I and the world-first two-phase xenon dark matter experiment ZEPLIN-II (both with Sheffield involvement). Both experiment have set world-competitive limits on WIMP interactions at that time. The technology was later advanced in ZEPLIN-III, XENON10, XENON100 and finally LUX, XENON1T and PandaX detectors. A number of liquid and two-phase argon experiments have also been running or are at the design or construction stages.

The key principle of selecting WIMP-induced signals from a much bigger rate of background events is the discrimination between nuclear recoils expected from WIMP interactions and the majority of background events due to electrons caused by gamma-rays or beta-decays.

LZ uses about 7 tons of active liquid xenon in a cryostat surrounded by an additional thin region of xenon ('skin'), liquid organic scintillator and water, all being viewed by photomultiplier tubes (PMTs). Xenon skin, organic scintillator and water are used as an anticoincidence system to identify and reject events caused by various particles but WIMPs. Below is the schematic of the LZ detector.



LZ detector

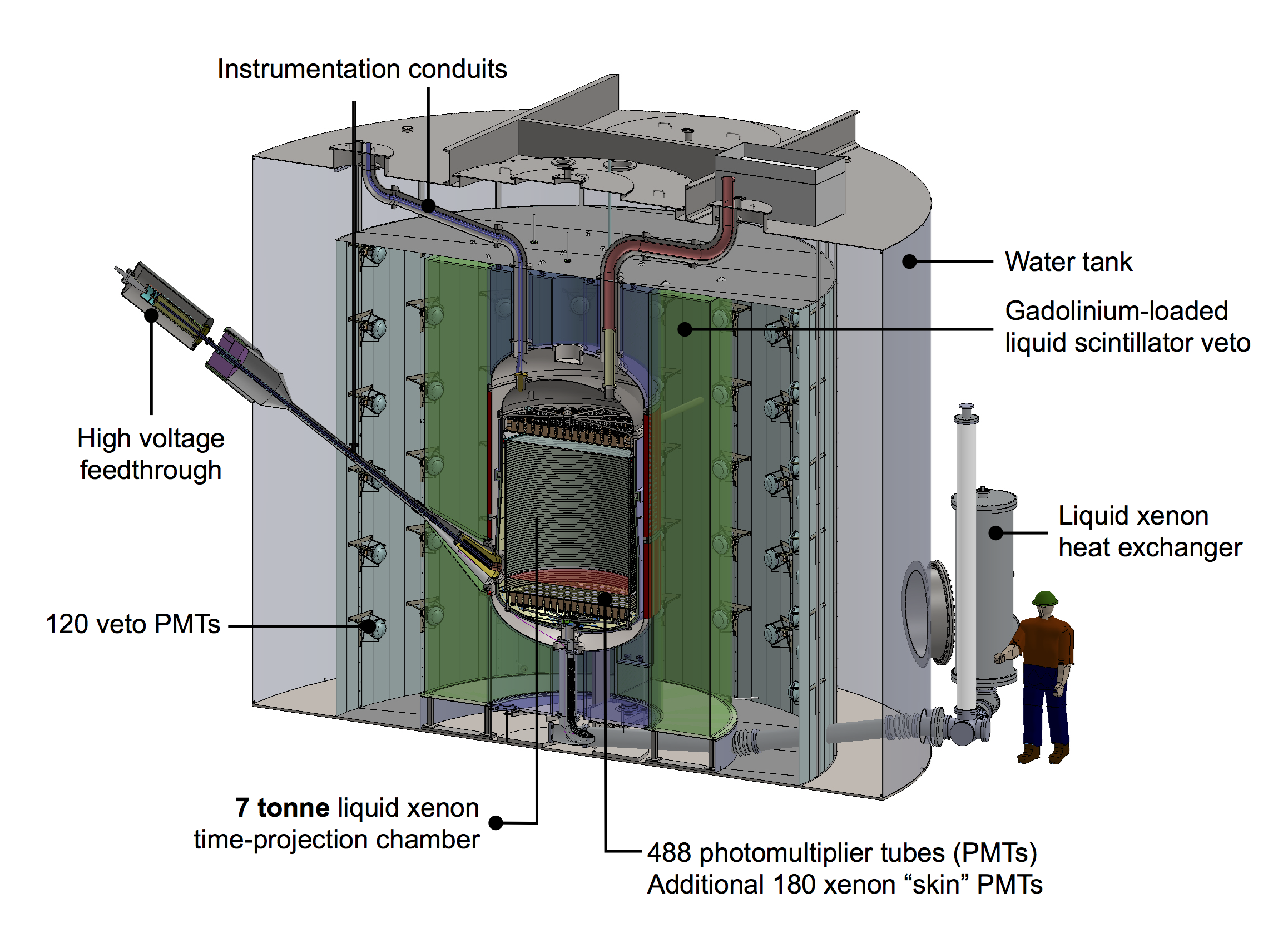

Figure 1. Cross-sectional schematic view of the LZ detector [http://lz.lbl.gov].



The central part of the detector, liquid xenon time projection chamber (TPC), has a strong electric field allowing position reconstruction of events. PMTs, viewing this central part, detect two signals from each particle interaction within the TPC: the first signal is due to the prompt scintillation in liquid xenon, the second one is due to ionisation electrons drifting in electric field upwards, into the gas phase producing electroluminescence signal in gaseous xenon. The delay between the two signals is proportional to the drift time of electrons and hence, to the z-position along the drift field of the nuclear recoil or background electron recoil within the TPC. Distribution of light between PMTs allows the reconstruction of the hit position in the x-y-plane perpendicular to the drift field.

A powerful discrimination between nuclear and electron recoil events is achieved by measuring the ratio of the two signals: ionisation to scintillation which is measured to be significantly smaller for nuclear recoils than for electron recoils for the same magnitude of the scintillation pulse. The LZ experiment will be significantly more sensitive to WIMPs than any currently running experiment.

The LZ detector is now operating at a depth of about 4850 ft underground (to attenuate cosmic-ray muons by about 7 orders of magnitude) at SURF in Lead, South Dakota. The construction and operation of LZ has been supported by the Department of Energy (DoE) and the State of South Dakota in the USA, Science and Technology Facilities Council (STFC) in the UK, as well as by funding agencies in other participating countries. UK scientists from the Imperial College London, University College London, Royal Holloway University of London, the universities of Bristol, Edinburgh, Liverpool, Oxford and Sheffield, and the STFC Rutherford Appleton Laboratory have been and are contributing to the LZ construction and operation.

Sheffield involvement

The team in the University of Sheffield has been focusing on modelling background radiations for the LZ experiment and is now working of characterisation of backgrounds in the experiment contributing to the construction of the background model included in the interpretation of the results in terms of WIMP limits or potential signal. One of the main background in the experiment, which should be sufficiently attenuated is neutrons from radioactivity in major detector components and cosmic-ray muons. Based on our previous experience with simulations, we have calculated neutron yields and spectra from various materials that are used in the LZ construction and are now assessing these background using available data from the first science run. An example from simulations is shown below.

Neutron spectra from stainless steel

Figure 2. Neutron spectra from uranium and thorium contamination in stainless steel. Concentrations of 1 ppb of U and 1 ppb of Th were assumed. Calculations have been done using the modified SOURCES4 code.



We have also developed a model for cosmic-ray muons at SURF. The model takes into account the surface profile above the underground laboratory and muon transport through rock using accurate interaction cross-sections. The model predicts muon fluxes, energy spectra and angular distributions that can be used in simulating background neutron events and their suppression by the outer detector anticoincidence systems: water Cherenkov and liquid scintillator detectors viewed by PMTs. Surface profile above SURF and azimuthal angular distribution of muons at SURF are shown below in Figure 3. We have also simulated neutrons produced by cosmic-ray muons and showed that this background is well under control and does not make a significant contribution to the total background rate.

Surface profile at SURF                             Azimuthal angle distribution of the muon flux

Figure 3. Left: surface profile above the Davis campus at SURF (located at the centre of the map). The colour scheme depicts the altitude above sea level in meters. East direction is to the right. Right: azimuth angle distribution of 107 muons at SURF as generated by MUSUN. The azimuth angle is counted from East to North (East is pointing to the right on the left figure). Muon intensity is integrated over zenith angle.



In addition we deployed an event biasing method into the LZ detector simulations that is required to propagate particles (gammas and neutrons) through a large thickness of shielding which results in a large attenuation of the flux. This method splits the simulation into multiple stages. The first stage runs as a normal simulation and the events which reach a user-defined boundary are saved. The subsequent stages then propagate the saved particles from the previous stage multiple times and then the particles which reach the next user-defined boundary are saved. This method helped to significantly speed up the simulations of the cavern rock gamma-rays which were performed on the Sheffield HEP HTC cluster. These simulations determined the contribution of the cavern rock gamma-rays to the background in the WIMP search and other physics studies in LZ.

We are now working with the LZ data focusing on discriminating single against multiple neutron scattering events, activation studies and measurements of the muon flux and muon-induced background.



 Diagram of the rock gamma simulations        Spectra of energy depositions from rock gammas



Figure 4. Left: a schematic drawing of the event biasing method implemented into LZ detector simulations in order to simulate the cavern rock gamma-rays (dimensions not to scale). Right: the energy spectra of simulated cavern rock gamma-ray events inside the TPC before standard analysis cuts are applied. The insert shows the energy spectra after cuts are applied inside the energy range of interest for WIMP searches.



Our PhD students have helped with the construction and operation of the LZ detector at SURF.

Peter Rossiter with PMT array    Andrew Naylor next to the Cori supercomputer an NERSC

Figure 5. Left - Peter Rossiter in the cleanroom at SURF helping construct the top PMT array for the LZ detector. Right - Andrew Naylor on the machine room floor at the LBNL in front of the Cori supercomputer.



We offer PhD projects to work on the LZ experiment. A PhD student will focus on data analysis, as well as on modelling background radiations and LZ detector response. The work will also include participation in LZ operation. Involvement in the design of a future dark matter experiment is also possible.



Thesis

Year

Title

Author

2022



2020

Background studies for LUX and LZ: activation, gammas from rock and krypton removal



Background mitigation in dual phase xenon time projection chambers

Andrew Naylor



Peter Rossiter

2017

Simulations of cosmic muons and background radiations for muon tomography and underground experiments

David Woodward



Talks/Posters

Date

Title

            Venue

Speaker

July 2022

Neutron production in (a,n) reactions in SOURCES4

Identification of dark matter 2022, Vienna, Austria

Vitaly Kudryavtsev



June 2022



Neutron yield calculation from (a,n) reactions with SOURCES4

Low radioactivity techniques 2022, Rapid City, SD, USA



Vitaly Kudryavtsev





May 2019



Neutron production in (alpha,n) reactions: where we were and where we are now

Low radioactivity techniques 2019, LSC, Jaca, Spain



Vitaly Kudryavtsev



April 2019

Background model for the LUX experiment

IoP Joint HEPP and APP    Annual Conference 2019, London, UK

Peter Rossiter

July 2018

Neutron production in radioactive process relevant to underground experiments

IDM2018, Providence, USA

Vitaly Kudryavtsev

July 2018

Simulations for the LZ experiment

IDM2018, Providence, USA

Vitaly Kudryavtsev

July 2018

LUX results and LZ sensitivity to dark matter WIMPs

ICNFP2018, Crete, Greece

Vitaly Kudryavtsev

March 2018

Simulations of gamma-ray background from rock for dark matter experiments

IoP Joint HEPP and APP Annual Conference 2018, Bristol, UK

Andrew Naylor

November 2017

Background radiations in underground experiments

HEPHY, Vienna, Austria

Vitaly Kudryavtsev

May 2017

Cosmogenic activation: recent results

LRT2017, Seoul, South Korea

Vitaly Kudryavtsev

April 2017

Direct and indirect detection of dark matter

IoP Joint HEPP and APP Annual Conference 2017, Sheffield, UK

Vitaly Kudryavtsev

April 2017

Monte Carlo generators for LZ simulations

IoP Joint HEPP and APP Annual Conference 2017, Sheffield, UK

Peter Rossiter

January 2017

The LUX-ZEPLIN dark matter experiment

HEP seminar, University of Warwick, UK

Vitaly Kudryavtsev

October 2016

The LUX-ZEPLIN dark matter experiment

HEP seminar, University of Birmingham, UK

Vitaly Kudryavtsev

October 2016

Dark matter searches with LZ

HEP seminar, University of Sheffield, UK

Vitaly Kudryavtsev

September 2016

Prospects for dark matter searches

IPA2016, Orsay, France

Vitaly Kudryavtsev

July 2016

The LUX-ZEPLIN dark matter experiment

The 12th International Workshop Dark Side of the Universe, University of Bergen, Norway

David Woodward

July 2016

Cosmogenic background in underground laboratories

IDM 2016, Sheffield, UK

Vitaly Kudryavtsev

September 2015

Can muon-induced background explain the DAMA data?

TAUP2015, Torino, Italy

Vitaly Kudryavtsev

April 2015

Muon-induced background and its impact on rare-event searches

Seminar, LNGS, Italy

Vitaly Kudryavtsev



LZ Publications

LZ publications from inspirehep.net

LUX Publications

LUX publications with Sheffield involvement from inspirehep.net



More information about the LZ experiment can be found at the official LZ web-page: http://lz.lbl.gov and also at the official LZUK web-page: http://lz.ac.uk/.
